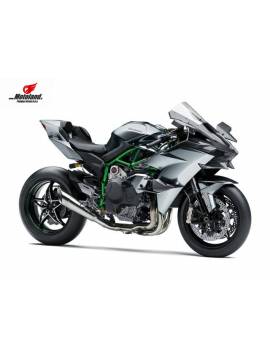

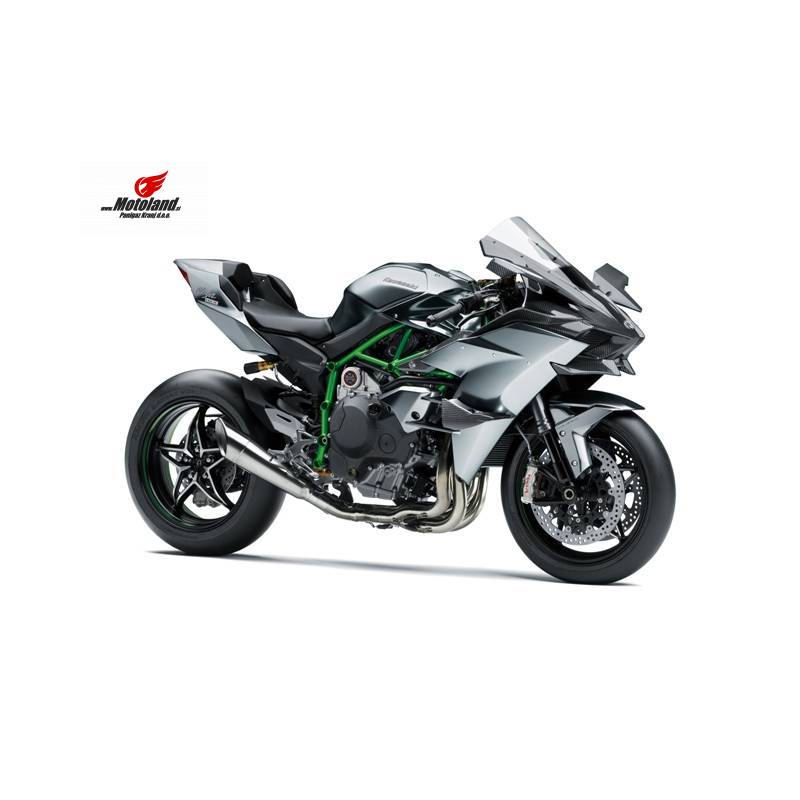

Ninja H2R
€57,408.00
Tax included
:
There are not enough products in stock
_001.png "KTRC (3-mode, 9-levels)")
Engine
- Engine type
- Liquid-cooled, 4-stroke In-Line Four with Supercharger
- Compression ratio
- 8.3:1
- Valve system
- DOHC, 16 valves
- Bore x stroke
- 76 x 55 mm
- Displacement
- 998 cm³
- Intake System
- Kawasaki Supercharger
- Fuel system
- Fuel injection: Ø 50 mm x 4 with dual injection
- Ignition
- Digital
- Starting System
- Electric
- Lubrication
- Forced lubrication, wet sump with oil cooler
Performance & Transmission
- Maximum torque
- 165 N•m {16.8 kgf•m} / 12,500 rpm
- Maximum power
- 228 kW {310 PS} / 14,000 rpm
- Maximum power with RAM Air
- 240 kW {326 PS} / 14,000 rpm
- Transmission
- 6-speed, return, dog-ring
- Clutch
- Wet multi-disc, manual
- Primary Reduction Ratio
- 1.551 (76/49)
- Gear Ratios 1st
- 3.188 (51/16)
- Gear Ratios 2nd
- 2.526 (48/19)
- Gear Ratios 3rd
- 2.045 (45/22)
- Gear Ratios 4th
- 1.727 (38/22)
- Gear Ratios 5th
- 1.524 (32/21)
- Gear Ratios 6th
- 1.348 (31/23)
- Final drive
- Sealed chain
- Final reduction ratio
- 2.333 (42/18)
Brakes & Suspension
- Brakes, front
- Dual semi-floating 330 mm Brembo discs. Caliper: Dual radial-mount, Brembo M50 monobloc, opposed 4-piston
- Brakes, rear
- Single 250 mm disc. Caliper: Brembo, opposed 2-piston
- Suspension, front
- 43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
- Suspension, rear
- New Uni-Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression damping, rebound damping, preload adjustability and top-out spring
Frame & Dimensions
- Frame type
- Trellis, high-tensile steel with Swingarm Mounting Plate
- Trail
- 108 mm
- Wheel travel front
- 120 mm
- Wheel travel rear
- 135 mm
- Tyre, front
- 120/600 R17
- Tyre, rear
- 190/650 R17
- Steering angle L/R
- 27° / 27°
- L x W x H
- 2,070 x 850 x 1,160 mm
- Wheelbase
- 1,450 mm
- Ground clearance
- 130 mm
- Fuel capacity
- 17 litres
- Seat height
- 830 mm
- Curb mass
- 216 kg
